美国ELECTROMATIC The 6000TC涂层测厚仪- 详细介绍：

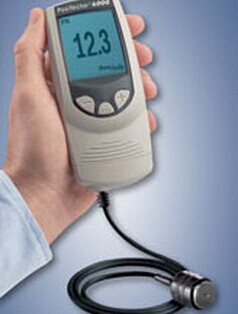

美国ELECTROMATIC The 6000TC涂层测厚仪
|
6000TC Series Thick Coating Model
|
|
Range: 0 - 250 mils (6 mm)
Resolution: 0.55 mil / 0.5 mil ( 0.01 mm / 0.01 mm) Substrates: F or FN
The 6000TC Series Thick Coating Thickness Gauge is a versatile, rugged tester using magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly.
For typical paint and coating applications for a thickness range of 0-250 mils (0-6 mm) applied to Ferrous substrates models include 6000-FTS1, 6000-FTS2 and 6000-FTS3. Models for use on both Ferrous and Non-Ferrous substrates include 6000-FNTS1, 6000-FNTS2 and 6000-FNTS3.
All models are offered in three possible configurations; BASIC (1), STANDARD (2) and MEMORY (3) permitting users to select the feature set most suitable for their application. Refer to table below summarizing the different features included with each type "1", "2" or "3".
|
Features
|
|
Feature Comparison Chart
|
Feature Comparison Chart
|
Basic
(1) |
Standard (2)
|
Memory (3)
|
|
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
|
-
|
|
|
|
Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
|
-
|
|
|
|
Reading Storage Capacity
|
-
|
250 in one group
|
10,000 in up to 1000 groups
|
|
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels
|
-
|
-
|
|
|
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
|
-
|
-
|
|
|
Built in clock to date and time stamp each stored measurement
|
-
|
-
|
|
|
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
|
-
|
-
|
|
|
PosiSoft downloading and charting software (includes USB cable)
|
-
|
optional
|
|
|
Built-in IR port for printing to an optional portable printer
|
-
|
