美国Rex Gauge H-1000-O硬度计- 详细介绍：

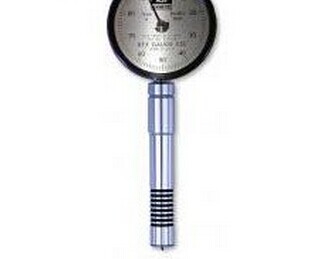

美国Rex Gauge H-1000-O硬度计
型号：H1000
微型硬度计
目前拥有的型号：A,D,B,C,DO,E,和O
现有的 ASTM 型号: A, D, B, C, DO, E, and O
现有的 ASTM 型号: A, D, B, C, DO, E, and O
尺寸：1.675X5.6H
重量：3.85OZ
特点：
包含NIST标准鉴定证书
符合ASTM D-2240标准
一年质保
定做携带式仪器箱
重设之前一直手持
小面积（直径 1.675"）
易携带在口袋里和别在皮带上
描述：
The Rex H-1000 Mini- Dial Durometer is both compact and easy to use. Its small dial face and included leather clip-on carrying case make it easy for an inspector to carry the gauge- for work around the shop, or out in the field. The H-1000 durometer holds the maximum reading until reset by pressing the button at the top of the gauge. The max-hold feature and small dial size make the H-1000 a good choice for hard to reach places, or for out of sight testing.
特征：
Includes NIST Calibration Certificate
Conforms to ASTM D-2240
One Year Warranty
Leather Carrying Case
Holds Reading Until Reset
Small Face (1.675" Diameter)
Easily Fits Into Your Pocket Or Clipped On Belt
|
DUROMETER TYPES
|
APPLICATIONS
|
INDENTOR SHAPE
|
MAIN SPRING
|
|
TYPE A
(ASTM D2240) |
Soft rubber, plastics, and elastomers, printer's rolls.
|
Flat Cone Point
35° Included Angle
|
822 GM
1.81 LB.
|
|
TYPE D
(ASTM D2240) |
Hard rubber and plastics such as thermo plastics, flooring and bowling balls.
|
Sharp Cone Point
30° Included Angle
|
4536 GM
10.0 LB.
|
|
TYPE B
(ASTM D2240) |
Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.
|
Sharp Cone Point
30° Included Angle
|
822 GM
1.81 LB
|
|
TYPE C
(ASTM D2240) |
Medium hard elastomers and plastics. Also useful to avoid surface marks.
|
Flat Cone Point
35° Included Angle
|
4536 GM
10.0 LB
|
|
TYPE DO
(ASTM D2240) |
Dense granular material, textile windings.
|
3/32" Spherical
|
4536 GM
10.0 LB
|
|
TYPE O
(ASTM D2240) |
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.
|
3/32" Spherical
|
822 GM
1.81 LB
|
|
TYPE OO
(ASTM D2240) |
Light foams, sponge rubber gels, animal tissue.
|
3/32" Spherical
|
113 GM
|
|
TYPE OOO
(ASTM D2240) |
Ultra soft gels and sponge rubber.
|
1/2" Spherical
|
113 GM
|
|
TYPE M
(ASTM D2240) |
Materials as thin as .050"
|
Sharp Cone Point
30° Included Angle
|
|
